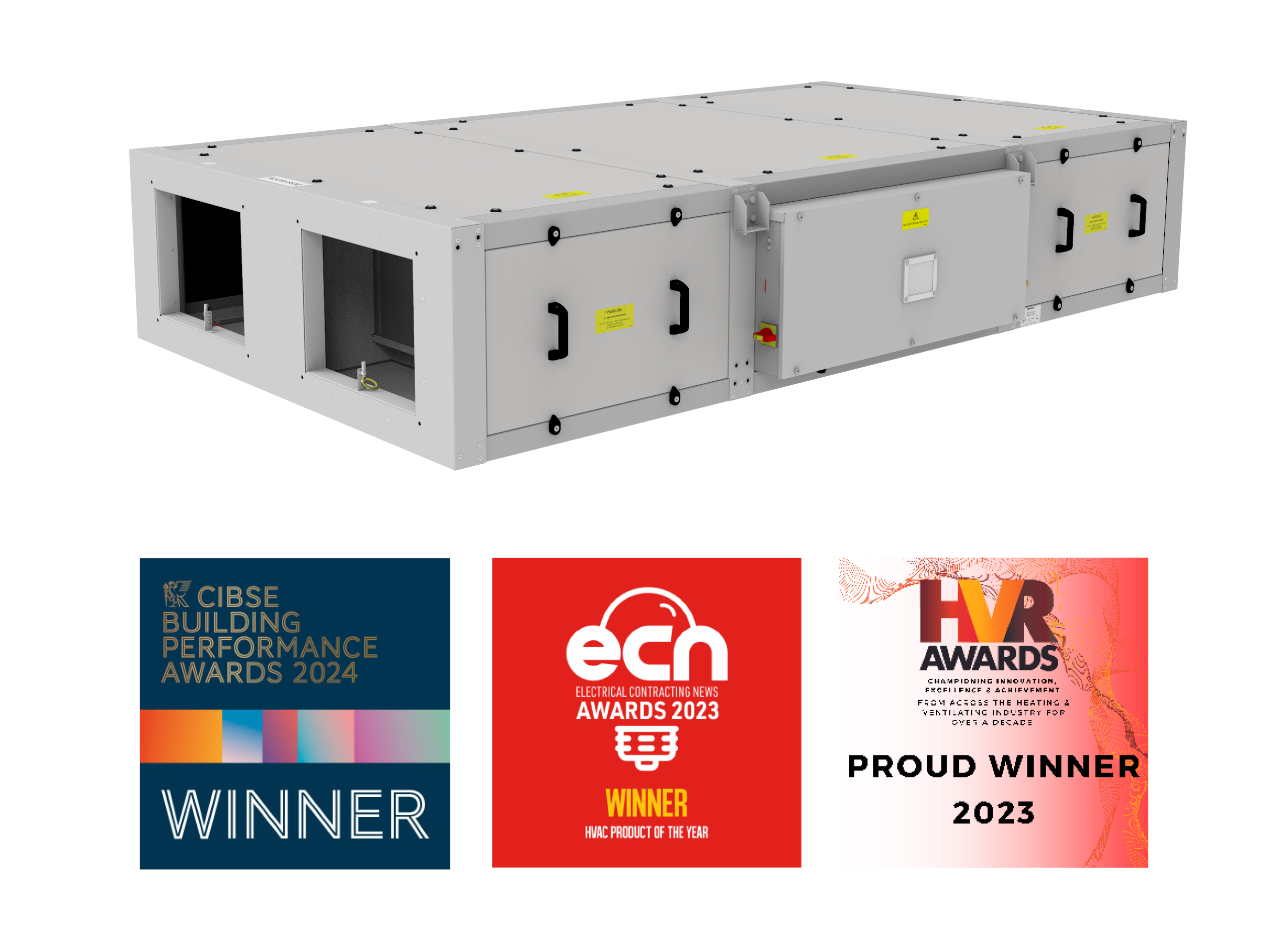

Sentinel Apex HR06Heat Recovery

• Multi-Award Winning product

• Low SFP utilising IE 5 equivalent motors

• High Heat Recovery Efficiency – up to 93% (EN308)

• Automatic summer bypass sized to eliminate performance loss

• ePM10 50% and ePM1 55% filters as standard (M5 / F7 equivalent)

• Filter access from bottom and side as standard

• Digital on board controller and remote room controller as standard

• Very low sound levels independently tested and verified by SRL

• App connectivity as standard. Wired and Wireless communication sensors available

• Integral condensate pump, tray and electric frost protection heater as standard

The Sentinel Apex unit is manufactured with a double skinned pentapost construction incorporating aluzinc frames and panels. The panels are acoustically and thermally treated with 90kg/m3 high efficiency acoustic and thermally insulating foam (fire retardant to BS476 Part 7 Class 1 & Part 6 Class O). The construction of the unit, IPX4, allows for internal and external mounting as standard, however, the roof assembly should be included for full external locations.

The housing is designed to be as compact as possible for concealed false ceiling applications with top and bottom access panels for maintenance. Access panels are sized to enable single person maintenance.

The fans utilised in the Sentinel Apex are the latest EC/DC external rotor motors specifically chosen for their low power consumption and low noise characteristics. The assembly is dynamically balanced to DIN ISO 1940 Grade 6.3. Ball bearings are greased for life. Insulation is Class ‘B’ (from -25°C to +60°C). All models incorporate internal electronic overload protection and a soft start function.

The Sentinel Apex is complete as standard with ISO ePM10 50% (M5) extract filter and ISO ePM1 55% (F7) supply, complete with a filter change warning. Filters have been selected to fully comply with the requirements of ISO16890 whilst having low pressure loss characteristics.
