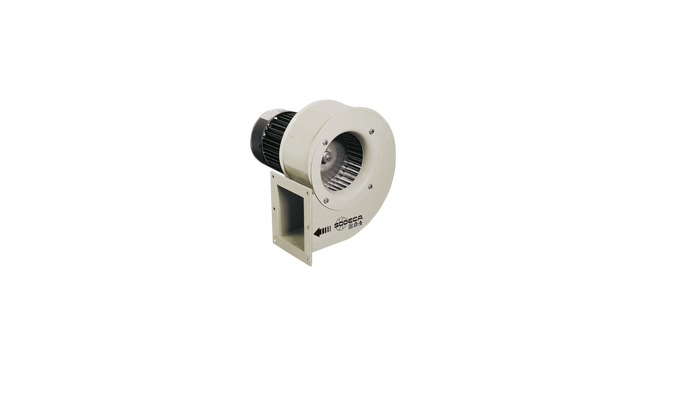

CMP/AL FanAL Fan
Non-sparking aluminum fans for use in rooms with natural gas boilers
Low and medium pressure fans with non-sparking aluminum construction, for use in rooms with natural gas boilers according to the UNE 60601 standard, not suitable for ATEX risk areas.
Fan:
• Forward curved impeller in aluminum sheet.
• Sheet aluminium casing.
• Maximum temperature of air to be carried: -25 ºC +120 ºC.
Motor:
• Class F motors with ball bearings and IP55 protection.
• Single-phase 230 V 50 Hz.
• Working temperature: -25 ºC +50 ºC.
Finish:
• Anti-corrosive finish in polyester resin, polymerised at 190 ºC, after degreasing with phosphate-free nanotechnology treatment.
On request:
• Special windings for different voltages.
• ATEX certified Category 2.
Characteristic | Value |
---|
